CHEMATEC FLEC

FLEC® equipment

Products for emission testing

Build a laboratory, on-site or production quality-control setup with the original FLEC Cell, controlled air supply and purpose-made accessories.

Core systems

5 products
FLEC Cell

FL-0001

FLEC Cell

The Flec Cell (Field and Laboratory Emission Cell) is made of certified solid acid-resisting stainless steel. All surfaces, getting in touch with the sample emitted, are polished. This provides, together with the very small surface area of the test-chamber, a dramatic minimizing of the sink-effect compared to the sinkeffect of conventional chambers. The outlet split provides up to 90% of the supplied air to be collected on one or two sample tubes, and secure a very small, but constant overpressure in the chamber. FLEC® is also used in production-line quality control, including the manufacture of wood flooring, paints and coatings.

View product
FLEC Air Control 1000

FL-1000

FLEC Air Control 1000

The FLEC Air Control Fl-1000 is designed according to the specification to control the flow, humidity and purity for the air supplied to the Field and Laboratory Emission Cell –FLEC. Even The FLEC Air Control has a high capacity charcoal filter it must be supplied with a compressed dry and clean air (Synthetic air is recommended) Mixing dry air and saturated air makes controlling the humidity of the air. It is possible to test individual flows and mixed flows by switching the build in valves and using reference measuring instruments.

View product
FLEC Sub Unit, ID 150 mm

FL-2001

FLEC Sub Unit, ID 150 mm

The FLEC Sub Unit FL-2001 is made in order to get emission samples from not planar or porous surfaces using the FLEC Cell. It provides sampling only from the upper surface using the dynamic headspace method or using the static head space method like from a chamber. But in this case, volume of the chamber may be changed to save time and increase sensitivity and to get the emission from the total surfaces to be sampled. Diameter of the chamber for model FL-2001 is 150 mm. The high may be variated from 0-to 100 mm only by led the unit stand on its 3 legs and turn the rest left or right to make the bottom of the chamber move up or down. The only different of FL-2001 and FL-2002 I that Model FL-2202 have a diameter of 152 mm. That makes it possible to get samples from liquid or sticky materials placed in a standard petri dich. The legs of the units are easy removed so the units may be placed on a heating plate or placed in an oven. All surfaces internal the chamber are made of polished alumina – Polished acid proved stainless steel (FLEC Cell) and a sealing ring made of Viton covered by PFA. That make no chemical reaction or emissions even by 200°C.

View product
FLEC Sub Unit, ID 152 mm

FL-2002

FLEC Sub Unit, ID 152 mm

The FLEC Sub Unit FL-2002 is made in order to get emission samples from not planar or porous surfaces using the FLEC Cell. It provides sampling only from the upper surface using the dynamic headspace method or using the static head space method like from a chamber. But in this case, volume of the chamber may be changed to save time and increase sensitivity and to get the emission from the total surfaces to be sampled. Diameter of the chamber for model FL-2001 is 150 mm. The high may be variated from 0-to 100 mm only by led the unit stand on its 3 legs and turn the rest left or right to make the bottom of the chamber move up or down. The only different of FL-2001 and FL-2002 I that Model FL-2202 have a diameter of 152 mm. That makes it possible to get samples from liquid or sticky materials placed in a standard petri dich. The legs of the units are easy removed so the units may be placed on a heating plate or placed in an oven. All surfaces internal the chamber are made of polished alumina – Polished acid proved stainless steel (FLEC Cell) and a sealing ring made of Viton covered by PFA. That make no chemical reaction or emissions even by 200°C.

View product

Sample preparation

7 products
FLEC Test Kit for Recovery Measurements

FL-0100

FLEC Test Kit for Recovery Measurements

By knowing the evaporation (emission) rate for a single compound by equal conditions as for your test material (air velocity, humidity, temperature and pressure) you are able to make recovery measurements. The FLEC Test Kit for Recovery Measurements consists of a glass plate with a cut hole in the centre adapted for a small vial, and an insolating pad. Add the desired VOC to the vial and weigh in. Place the glass plate with the vial on the insolating pad, and place the FLEC Cell with the desired input flow on top. Note the time. After some hours, according to the evaporating rate of the compound, weigh out and calculate the evaporation rate. Knowing the evaporation rate you can take a sample by a defined time and flow rate and calculate the weight of the compound absorbed on the sample tube(s).

View product

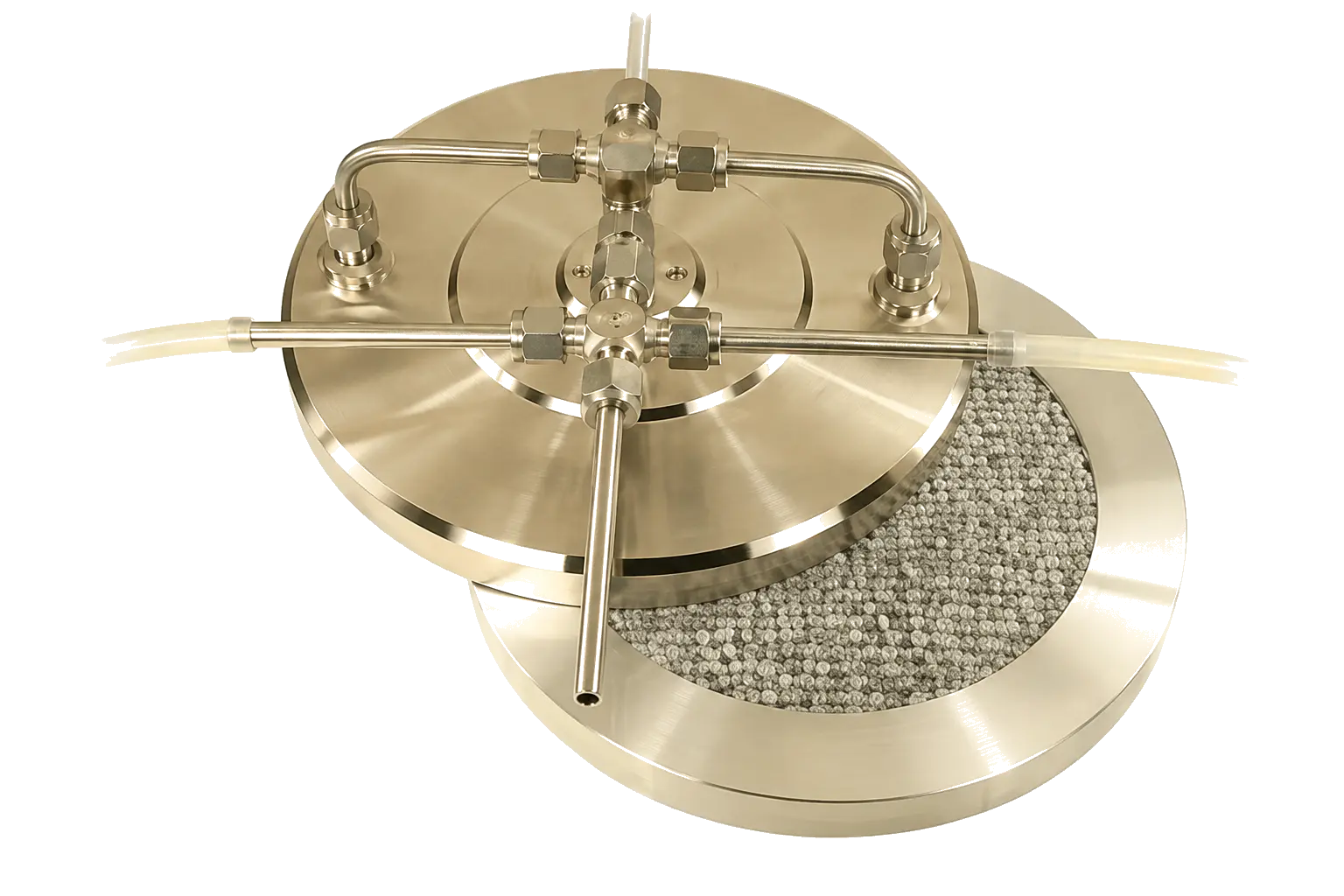

FLEC Test-plate for Carpets 10 mm

FL-0150

FLEC Test-plate for Carpets 10 mm

The carpet test plate FL-0150 allows the FLEC to sample emissions from carpets by thickness up to 10 mm. By using FL-151 Test plate adaptors varying thickness may be adapted in step of 1mm to keep the surface of the fabrics in level with the bottom of the FLEC. *FLEC Cell not included

View product

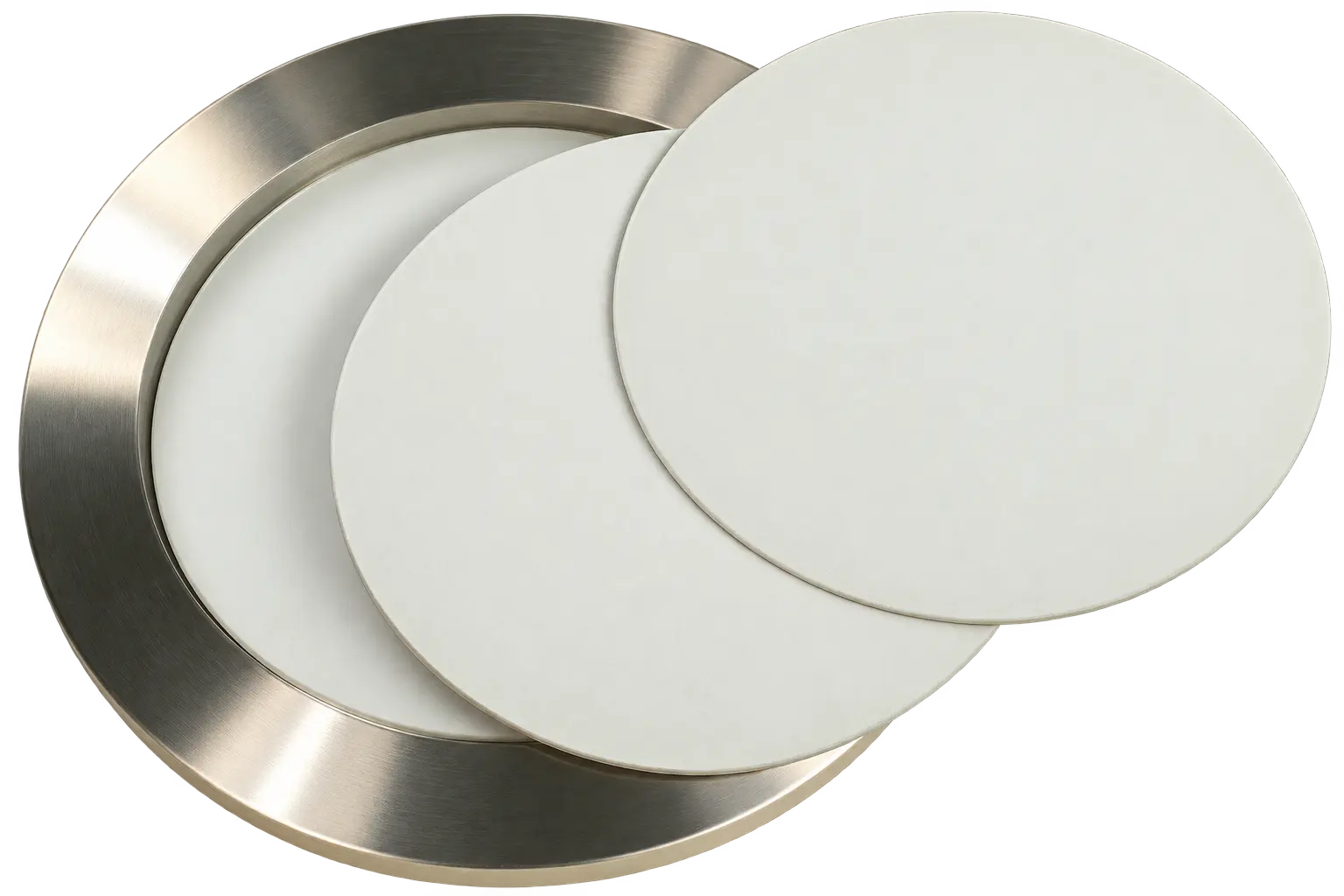

FLEC Test-plate Adapter (5 pcs)

FL-0151

FLEC Test-plate Adapter (5 pcs)

By using FL-151 Test plate adaptors varying thickness may be adapted in step of 1mm to keep the surface of the fabrics in level with the bottom of the FLEC. Used together with " FL-0150 FLEC Test-plate for Carpets 10 mm " and " FL-0152 FLEC Test-plate for Carpets 25 mm "

View product
FLEC Test-plate for Carpets 25 mm

FL-0152

FLEC Test-plate for Carpets 25 mm

The carpet test plate FL-0152 allows the FLEC to sample emissions from carpets by thickness up to 25 mm. By using FL-151 Test plate adaptors varying thickness may be adapted in step of 1mm to keep the surface of the fabrics in level with the bottom of the FLEC. *FLEC Cell not included

View product

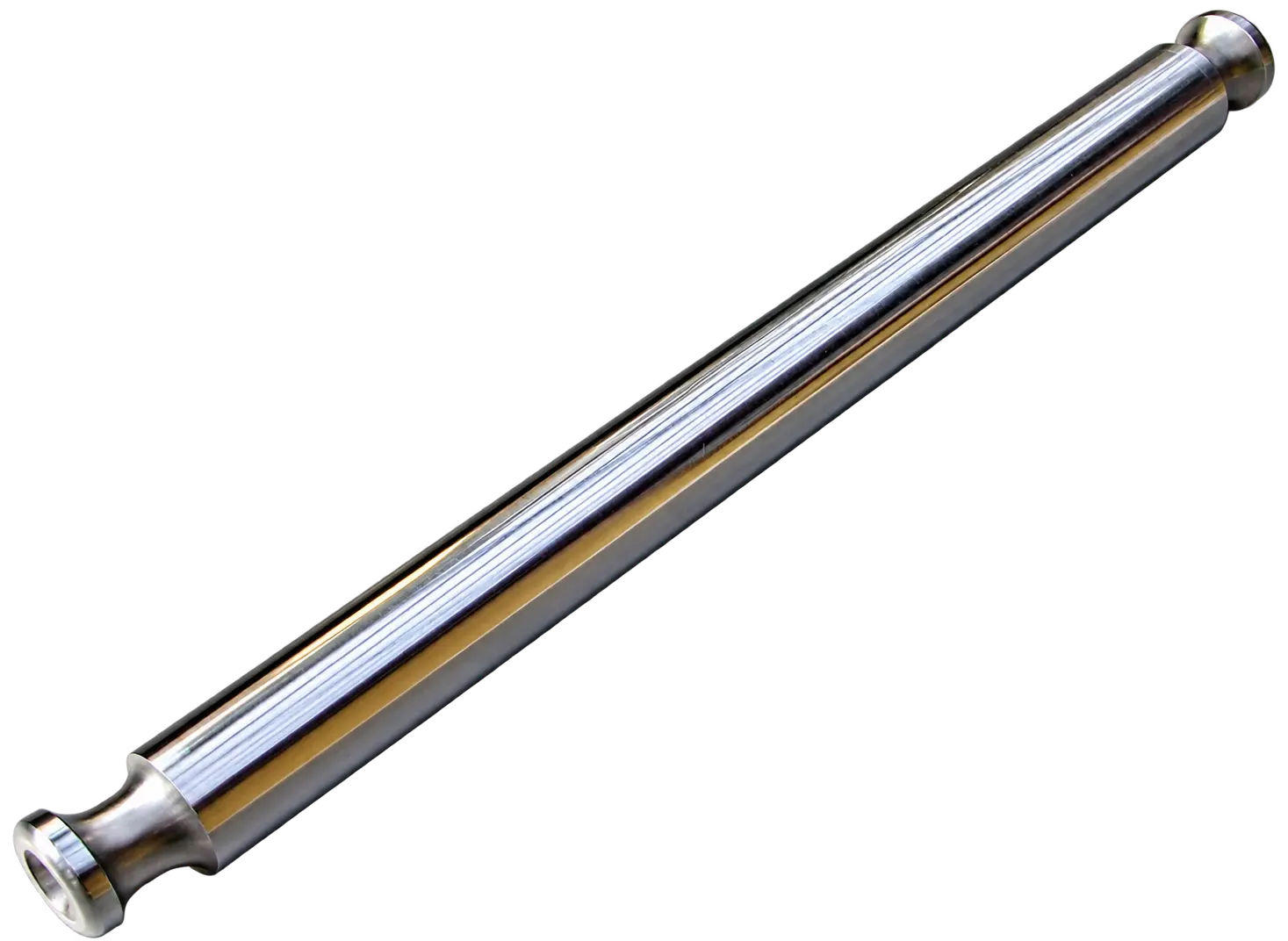

FLEC Application Roller

FL-0160

FLEC Application Roller

The FLEC Application Roller is used together with a FL-0161-FLEC Test Plate for application of paint or coatings to prepare a sample. It is made of harden chromium-plated solid steel for the best surface, durability and tolerance. The weight itself make a constant pressure by doing the application

View product

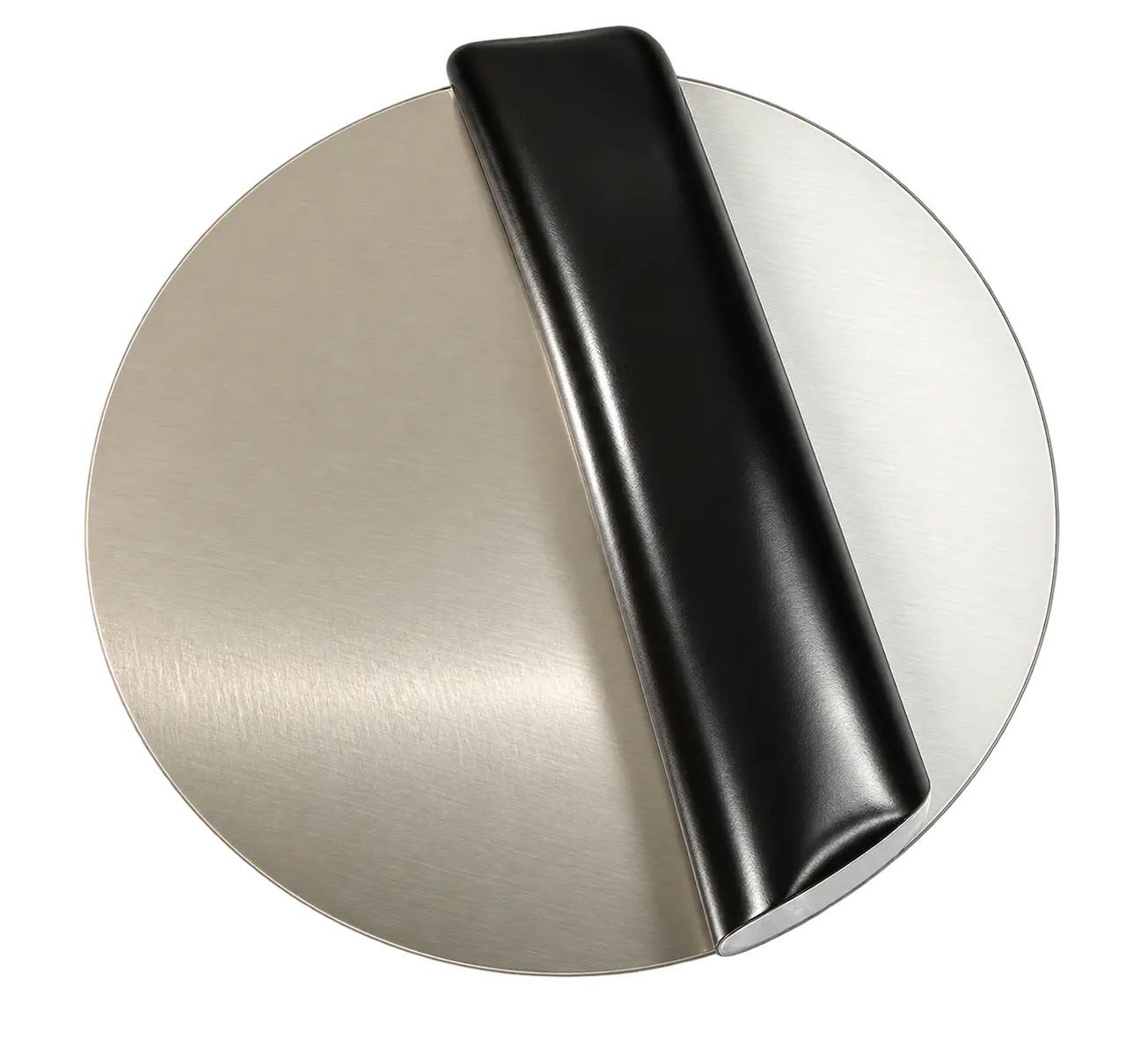

FLEC Test-plate for Paint & Coatings (5 pcs)

FL-0161

FLEC Test-plate for Paint & Coatings (5 pcs)

The FLEC Test Plate for Paint and Coatings is designed for applications of test materials onto a defined surface area with a defined coating thickness and with the possibility to check the weight. The application thickness is defined by the thickness of a foil laminated on an aluminium plate. The application surface area is defined by the area of a circular hole in the foil. By applying about 2 ml of the test material to the hole on the plate and distribute it by use of the Application Roller a defined application thickness is attaint. By removing the foil the defined application area is attaint. The possibility to check the weight of the test material is coursed by the comparatively small weight of the Test Plate and the defined surface area of the test material. Use the FL-0160-FLEC Application Roller to prepare the sample.

View product

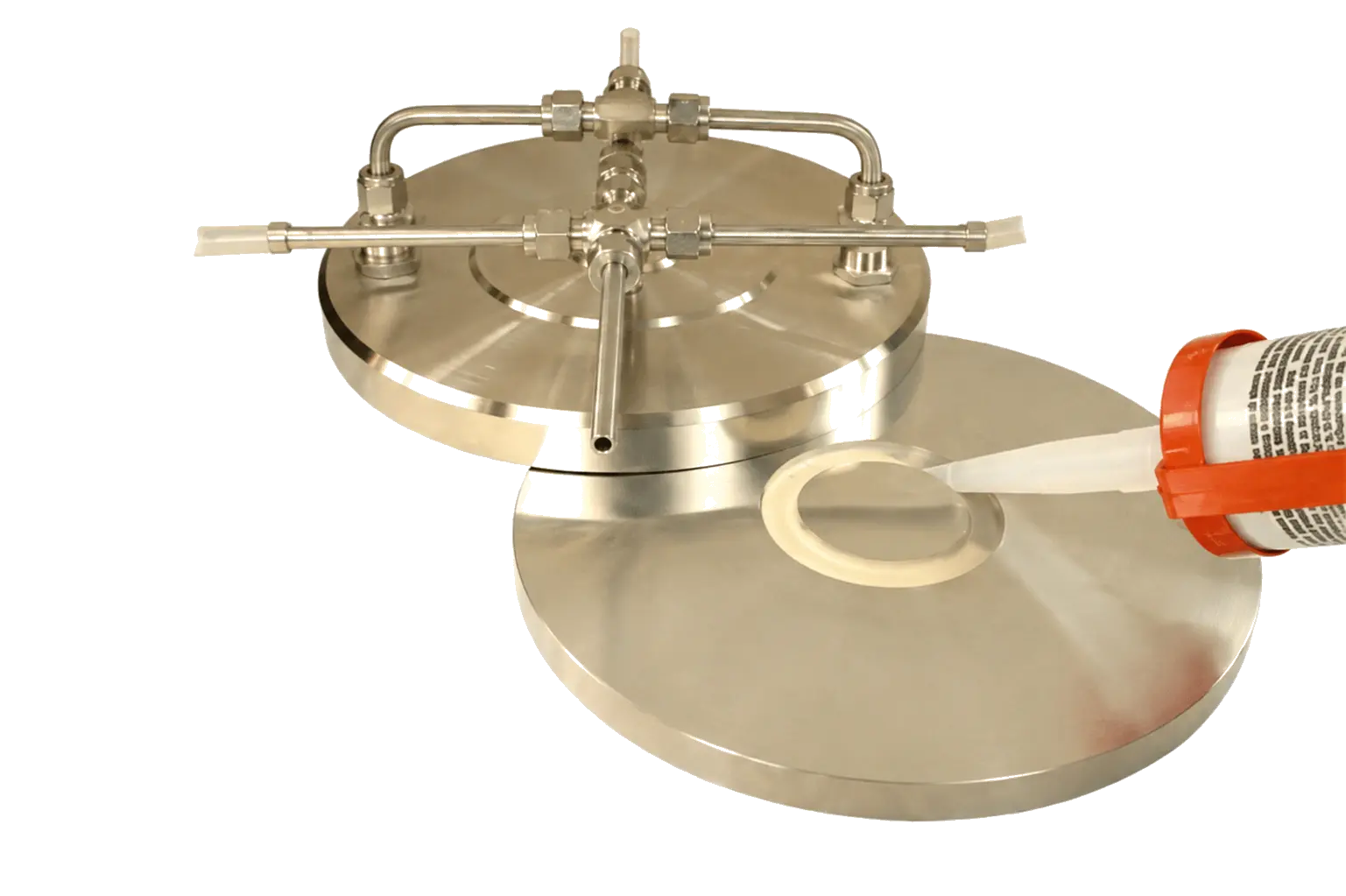

FLEC Test-plate for sealing

FL-0170

FLEC Test-plate for sealing

The test plate for Sealants measures emissions from small surface areas. Generally, sealing materials have a high degree of emission and the surface area is therefore smaller to prevent overloading. The FLEC Test-Plate can easily be dismantled for cleaning.

View product

Accessories

3 products

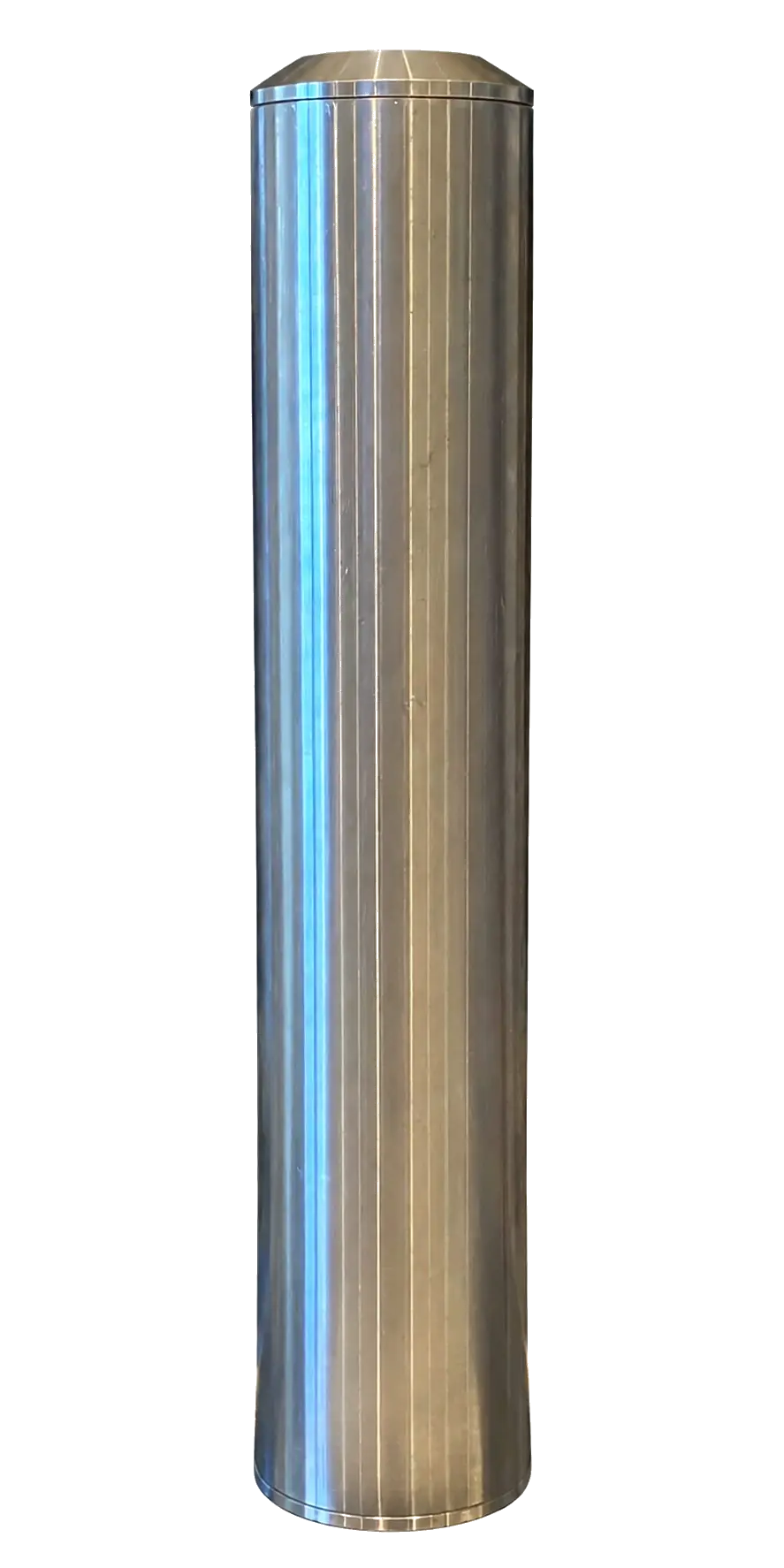

Filter, Charcoal for FLEC Air Controller

FL-1000-01

Filter, Charcoal for FLEC Air Controller

Char Coal Filter Replacement The char coal filter has a large capacity and is designed to work properly for one year under normal conditions. WARNING Do not try to take the filter in parts when it is mounted in FL-1000. *The filter can be shipped to CHEMATEC for reconditioning.

View product

Need help configuring a FLEC system?

Tell us whether you measure in a laboratory, on site, or both. We will recommend a suitable configuration.

Request a quotation
